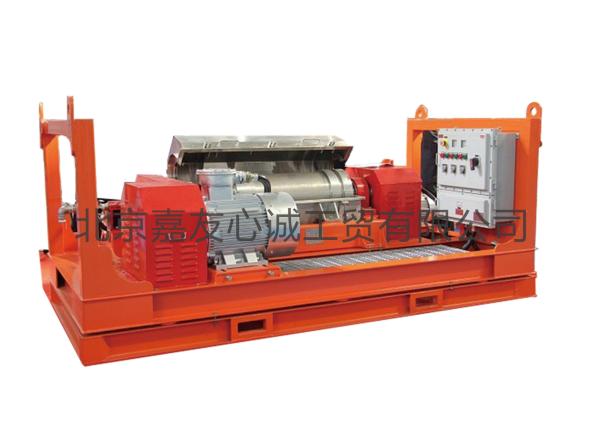

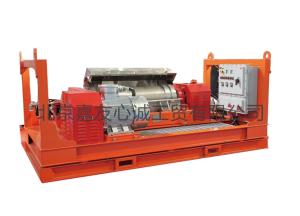

Decanter Centrifuge Linear Motion Shale Shaker For Petroleum Drilling
Product name: Decanter Centrifuge
Product Description:
The drilling fluid centrifuge is a five-stage solid particle control device in the drilling mud solids control system. It uses the principle of centrifugal sedimentation and separation to separate the suspension in the drilling fluid. It is used in the drilling field to balance the viscosity and specific gravity of the drilling fluid and recover the drilling fluid. Heavy gold stone powder in the liquid is an important equipment for saving drilling costs; it is mainly used to separate the solid particles of 2~5μm and 5~7μm in the drilling fluid. It is an essential equipment in the fields of oil drilling, coalbed methane drilling, and environmentally friendly waste mud treatment.
Technical parameters:
| Model |
ftlx01 |
ftlx02 |
ftlx03 |
ftlx04 |
ftlx05 |
| Bowl Diameter |
450mm |
450mm |
355mm |
365mm |
365mm |
| Bowl Length |
842mm |
1000mm |
1250mm |
1250mm |
1250mm |
Bowl Speed
(Varied) |
1800rpm |
2200rpm |
3200rpm |
3500rpm |
0-3200rpm |
| G-Force |
815 |
1220 |
2035 |
2500 |
2500 |
Separation
Point |
5~7μm |
5~7μm |
2~5μm |
2~5μm |
2~5μm |
| Main Drive |
22Kw-4p |
30Kw-4p |
30Kw-4p |
37Kw-4p |
37Kw-4p |
| Back Drive |
5.5Kw-4p |
7.5Kw-4p |
7.5Kw-4p |
7.5Kw-4p |
7.5Kw-4p |
| Max.Capacity |
≤40m3/h |
≤60m3/h |
≤40m3/h |
≤40m3/h |
≤40m3/h |
Weight
(kg) |
2950 |
3150 |
2850 |
2950 |
2950 |
Dimension
(mm) |
2380*1560*1350 |
2540*1560*1350 |
2810*1490*1350 |
3412*1600*1875 |
3412*1600*1875 |
Executive
standard |
UL/ATEX/BV/IADC/JAS-ANZ ISO 9001:2015/CE |
Product transaction information:
| Minimum order quantity |
1 set |
| Price |
Subject to the contract |
| Payment method |
Subject to the contract |
| Delivery period |
Subject to the contract |
| Standard packaging |
based on customer's needs |
Application areas:
It can be used for solid phase control in petroleum drilling, trenchless, coalbed methane and other fields. It can also be used in drilling fluid tail rotor treatment, solid-liquid separation in environmental protection industry, and also in food, medicine and other fields.
